Features:

Procedural Grid based LED generation,
Procedural Spline LED generation
Using instanced static meshes to improve performance,
Customize grid size,
Customize LED Tiles angles,
Hide Unwanted Tiles (Tiles number must be separated by a coma)

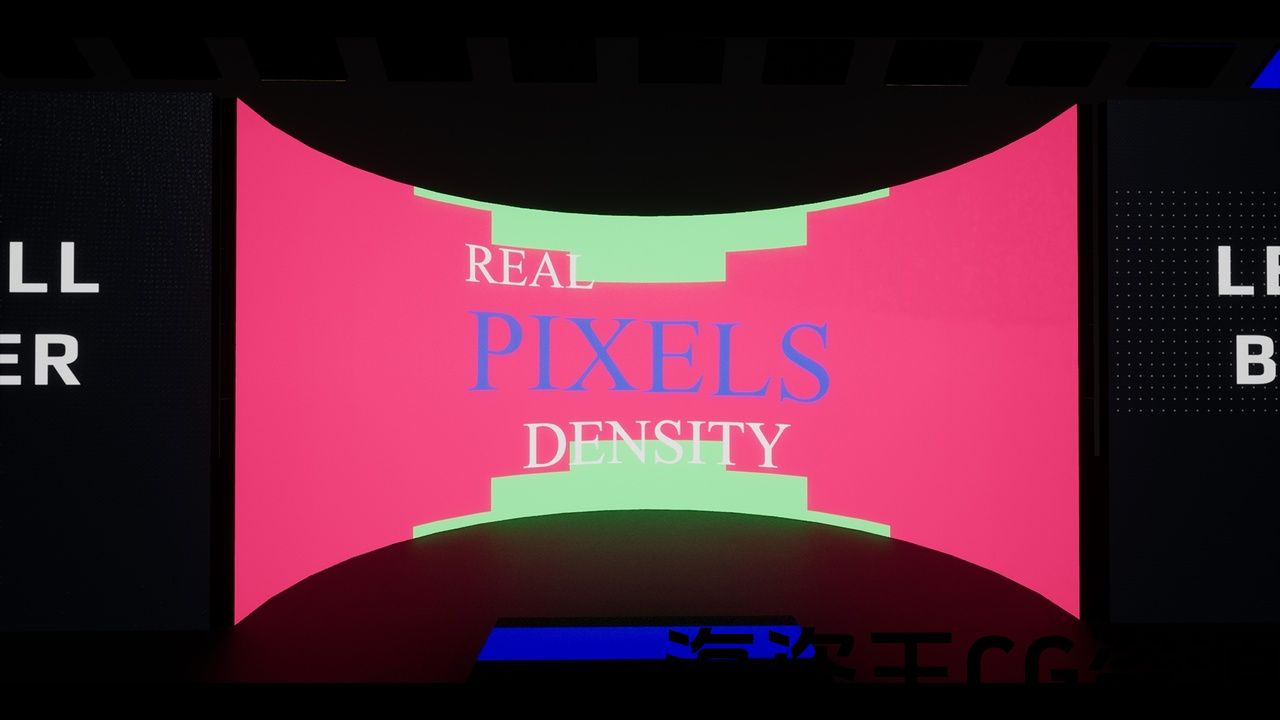

Real Pixels Density,

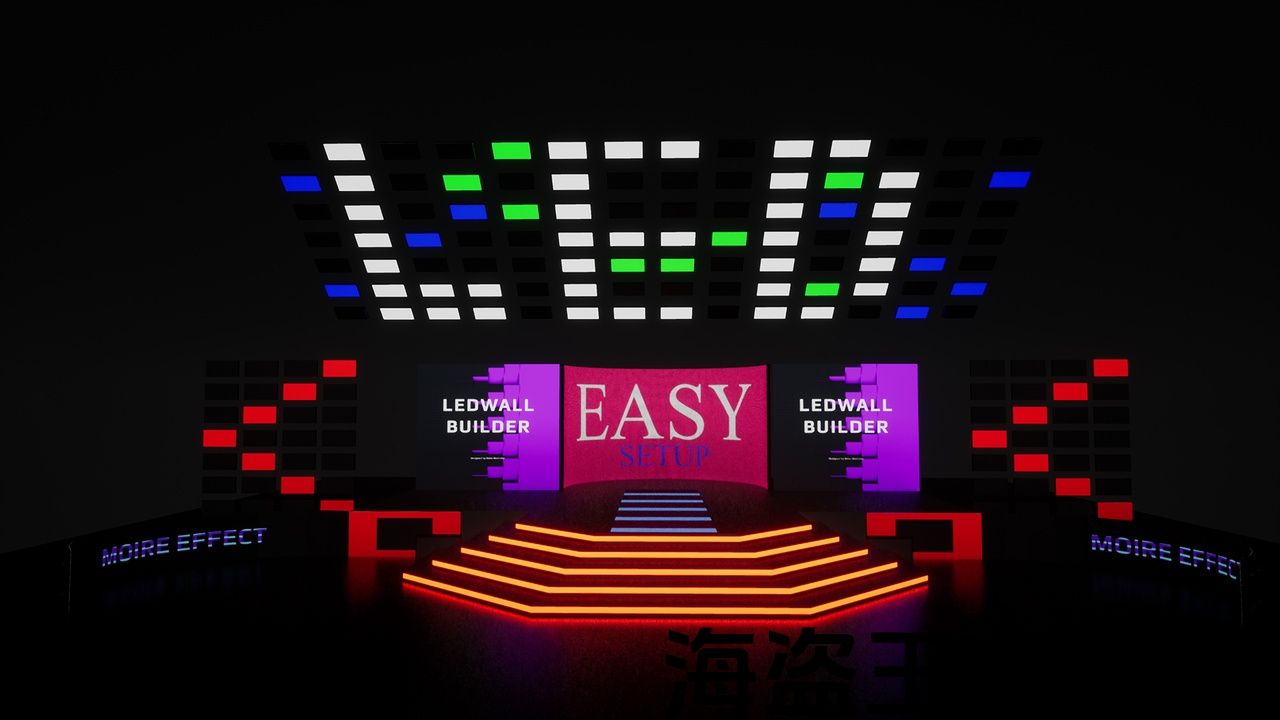

Real Camera Moiré Effect
Real World scale,
Multiple LED Screens and Video Players at the same time,
Procedural UV Texture Generation,
Customizable Material can add Tile Pixels, Numbers and Border,
Automatic LED info generation,
Tile Offsets
GCD Function to calculate the exact aspect ratio
Merge Mesh with a simple click and try to generate Frontal UV (in BETA)

Number of Blueprints: 12

Network Replicated: no

Supported Development Platforms:

Windows

Documentation:

Important/Additional Notes:

特征:

基于程序网格的LED生成,
程序样条LED生成
使用实例化静态网格体提高性能,
自定义网格大小,
自定义LED瓷砖角度,
隐藏不需要的瓷砖（瓷砖编号必须用昏迷分隔）
真实像素密度,
真正的相机莫雷效果
真实世界规模,
多个LED屏幕和视频播放器在同一时间,
程序化UV纹理生成,
可自定义材质可添加图块像素、数字和边框,
自动LED信息生成,
瓷砖偏移
GCD函数计算精确的长宽比
通过简单的点击合并网格并尝试生成正面UV（测试版）

蓝图数目:12

网络复制：没有

支持的开发平台:

窗户

文件:

重要/附加注意事项:

The LEDWAL BUILDER is created to provide a way to generate a full true-to-scale LED Volume quickly. It is fully customizable, comes with several ready to use assets and materials and it has 5 procedural blueprints in order to fit your needs.

100% blueprint coding – 100% customizable

***Editor Scripting Utilities Plugin Must Be Enabled***

DEMO VIDEO

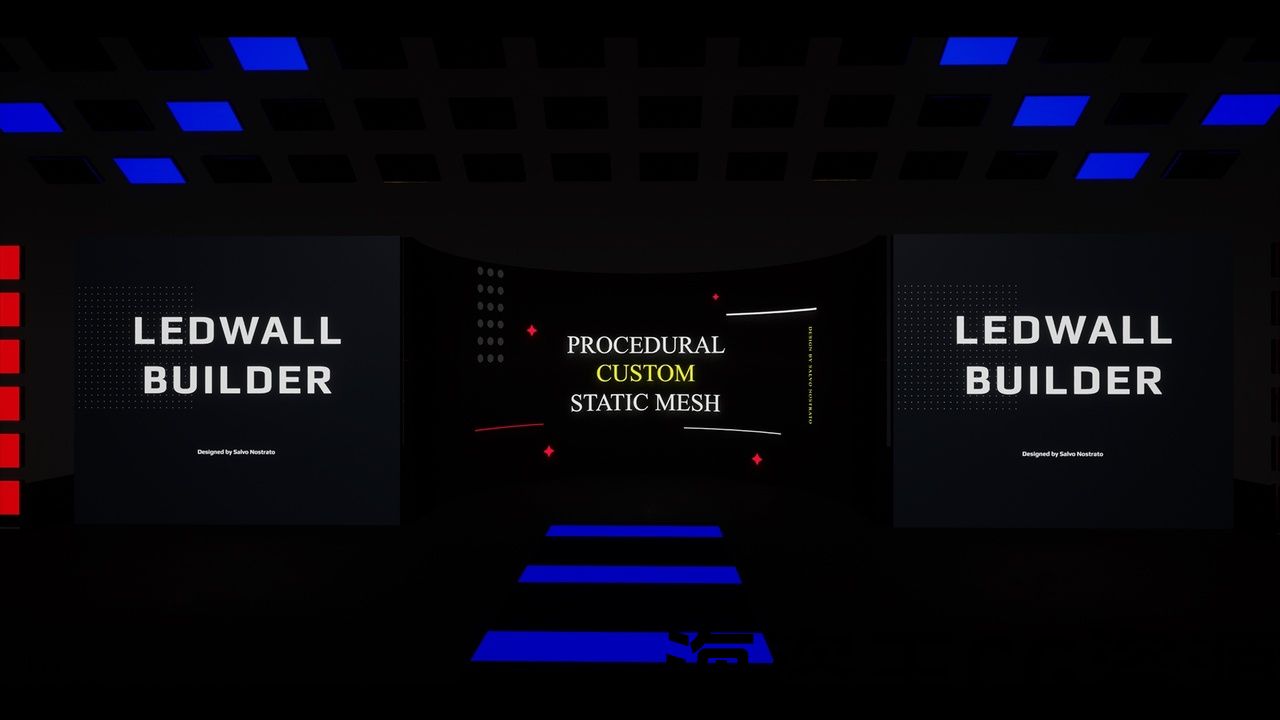

STATIC MESH BLUEPRINT

CUSTOM BLUEPRINT

DEMO VP – nDisplay – EDITOR BUILDER

NDI & Resolume Arena Setup

BlackMagic InputSource

Modify UV using C4D

Spline Setup

Hide Unwanted Tiles

Trigger Video Using DMX

CENTER CURVED LED VOLUME

With the help of 5 procedural blueprint you can create custom Led screen with perfect pixel resolution.

The included material can create UV tessellation with custom gradient colors, tiles indexing and borders.

Pixel density can be changed and automatically it will show the exact resolution and aspect ration for your custom textures or videos.

Using the BP_EditorBuilder_VPLED is possible to generate and merge meshes that could be used in Virtual Production setup. The generation of UV Map still in beta version. On a curved LED Screens is more effective to export the generated mesh in a 3D modelling software and custom edit the UV Map or use the UV editor inside UE5.

该 LEDWAL建造者 是为了提供一种快速生成完整的真实规模LED体积的方法。它是完全可定制的，有几个准备使用的资产和材料，它有5个程序蓝图，以满足您的需要。

100%蓝图编码-100%可定制

***编辑器脚本实用程序插件必须启用***

演示视频

静态网格体蓝图

自定义蓝图

演示VP-nDisplay-编辑器生成器
